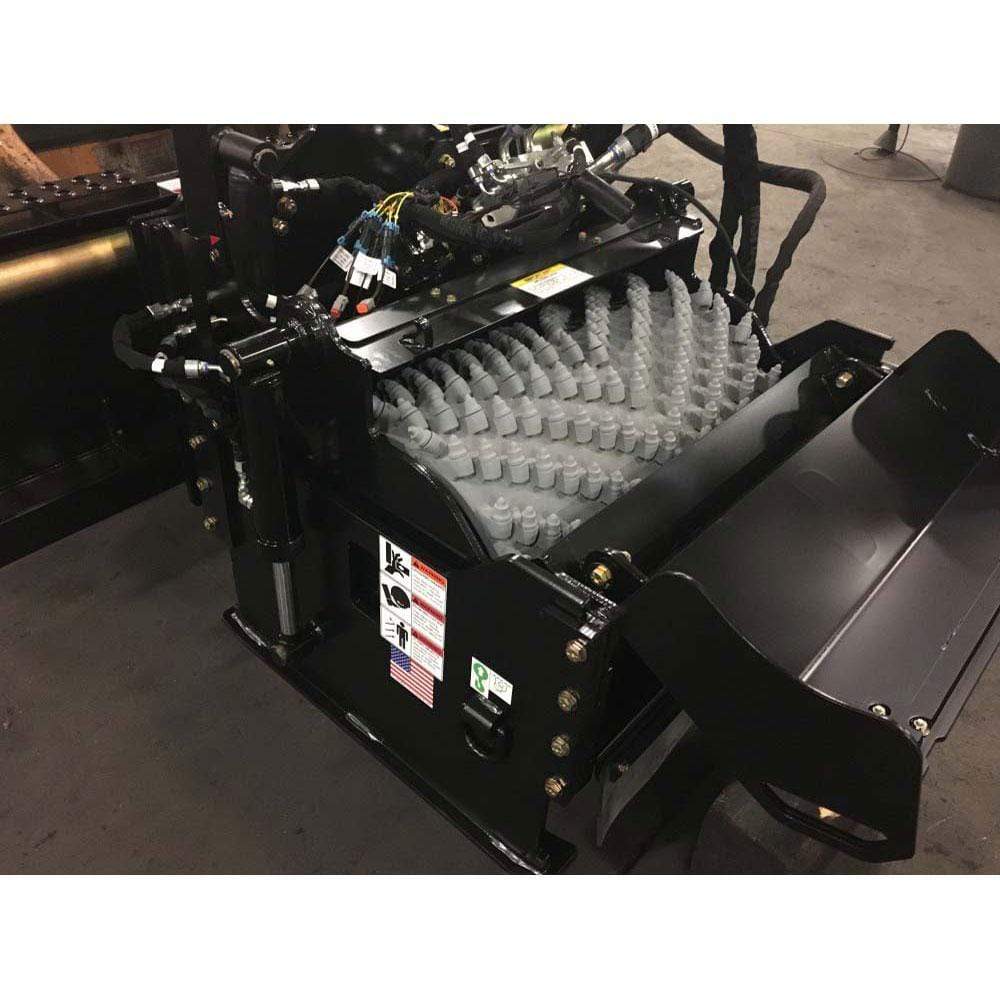

Blue Diamond Cold Planer - Standard Flow

Cutting Width: 12 Inch

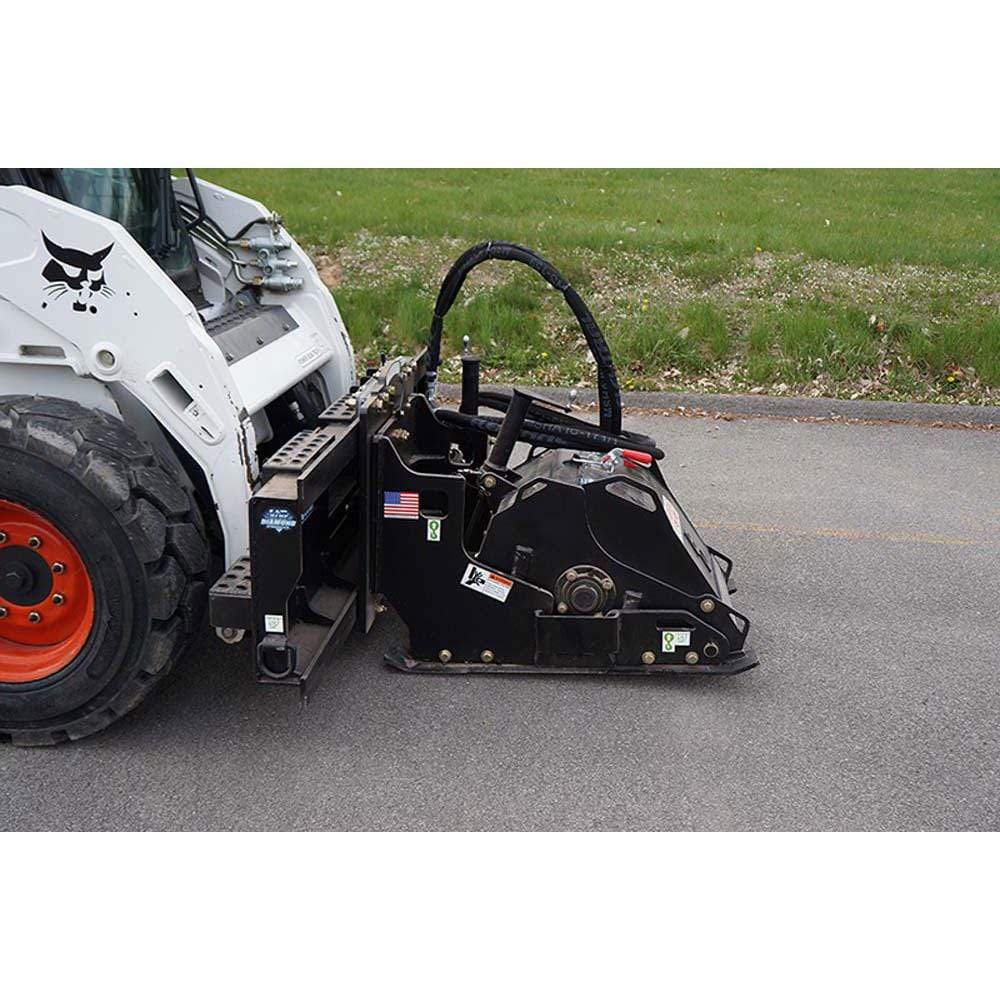

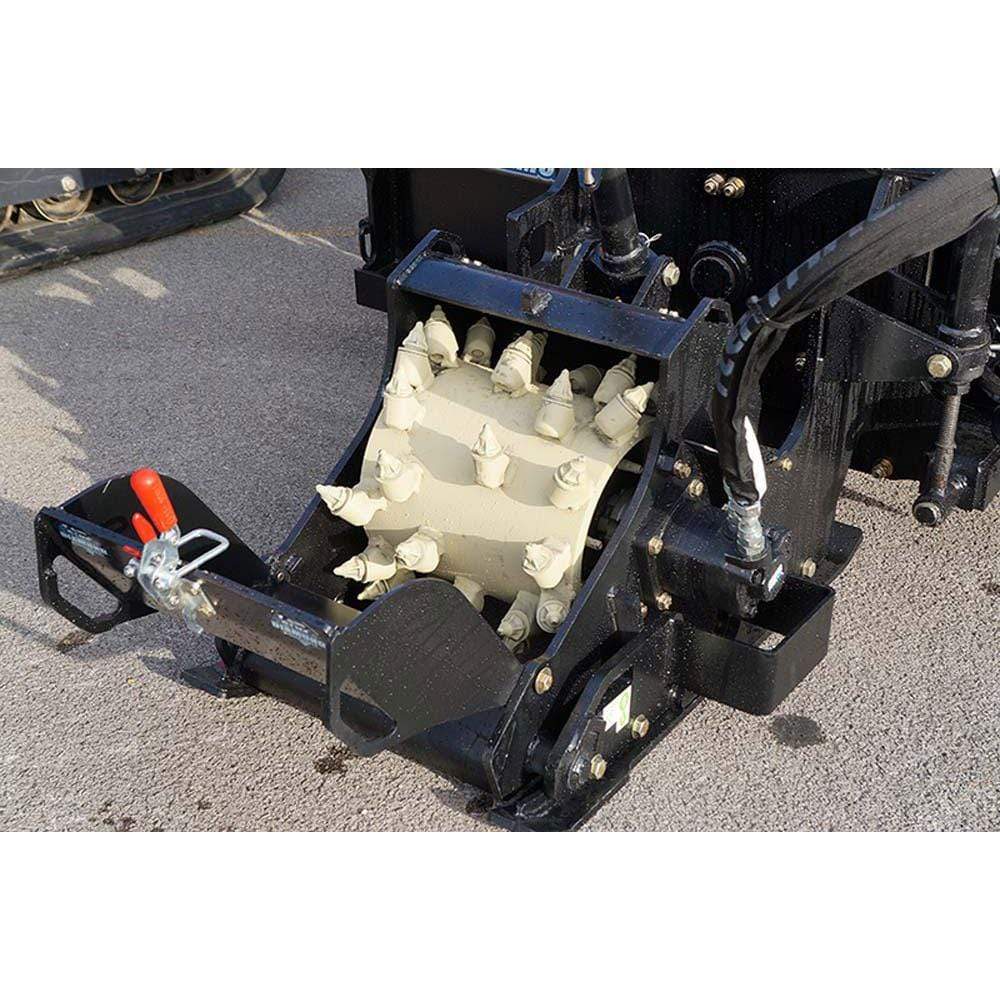

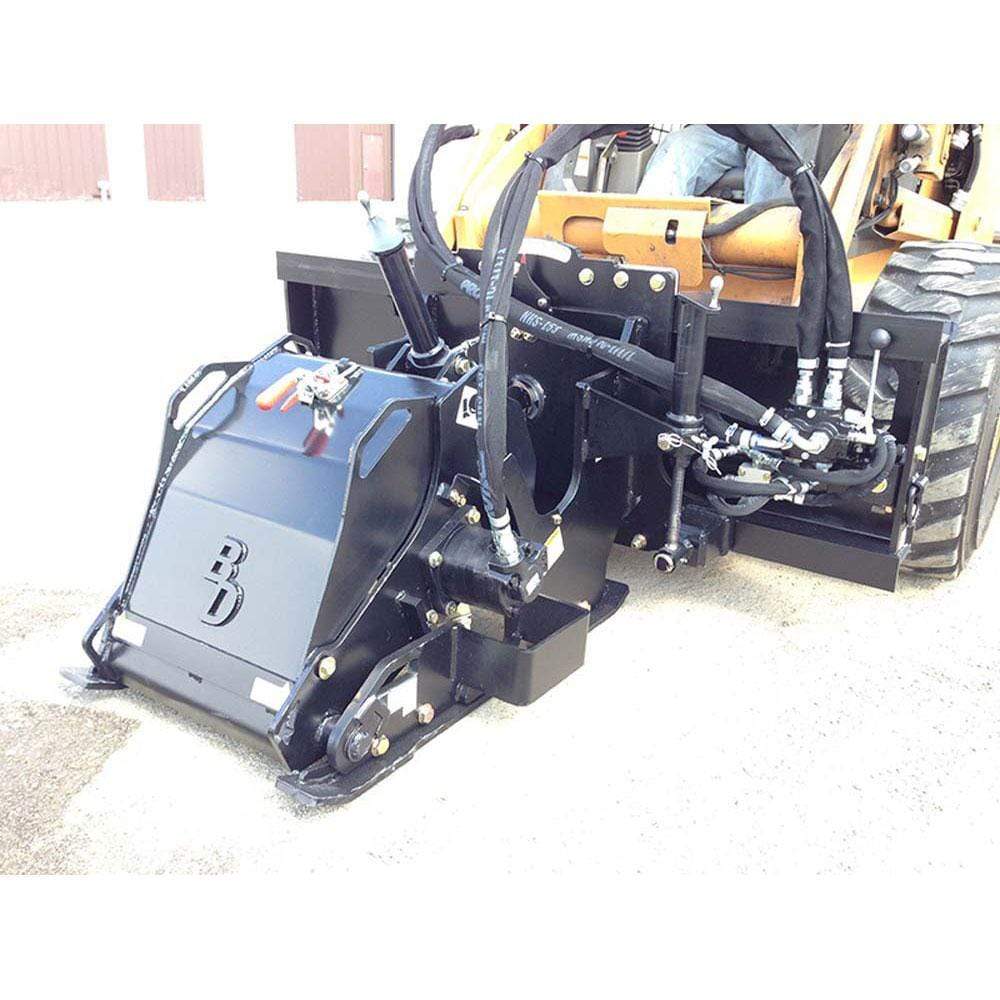

This premium low flow skid steer cold planer uses the most trusted components in the industry from the Sauer piston motor to the Fairfield planetary hub. These high end components combined with the highly engineered design makes this low flow cold planer one of the most trusted units available for a skid steer! Using the Rocket Fin tooth from the factory and the V tooth pattern setup, vibration is reduced and productivity is greatly increased! The adjustable side runners provide fine adjustment for grade control. The huge access cover allows easier tooth replacement (reducing tooth change time by up to 50% over competitors). This also provides a much safer way to change the teeth instead of getting under the unit!

12" Standard Flow Specification
Model 12"" Standard Flow
Cutting Width 12""
Cutting Depth 0-5""
Tilt +-15°
Side Shift 26""
# of Teeth 30
Min GPM/PSI 15/2000
Weight (lbs) 1220
16" Standard Flow Specification
Model 16"" Standard Flow
Cutting Width 16""
Cutting Depth 0-5""
Tilt +-15°
Side Shift 26""
# of Teeth 38
Min GPM/PSI 15/2000
Weight (lbs) 1250
