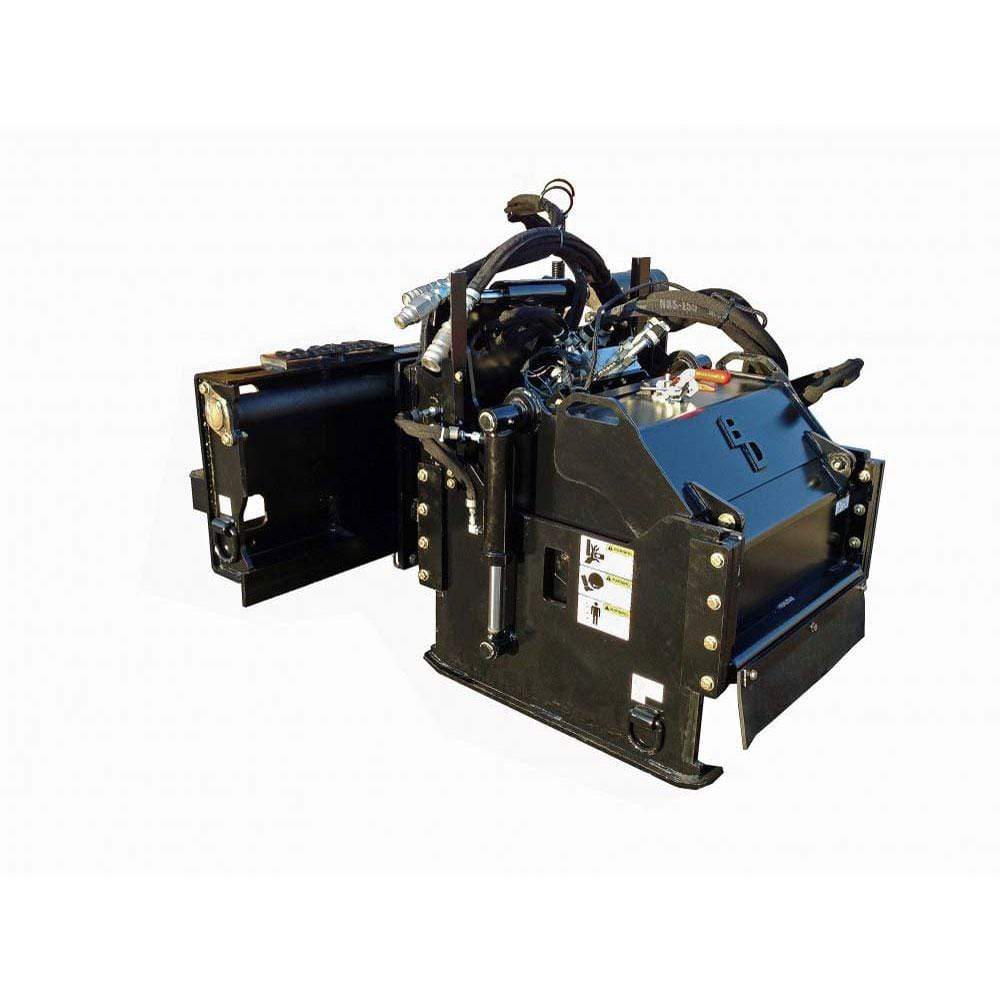

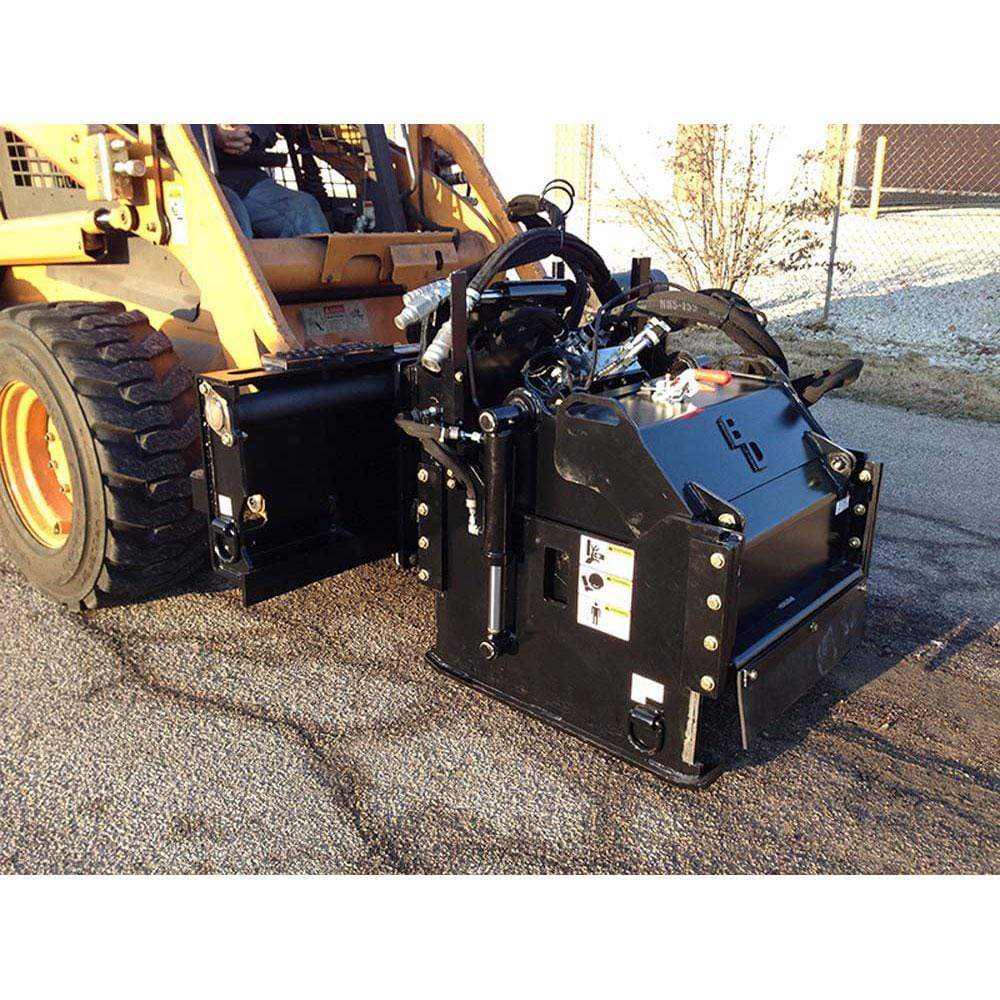

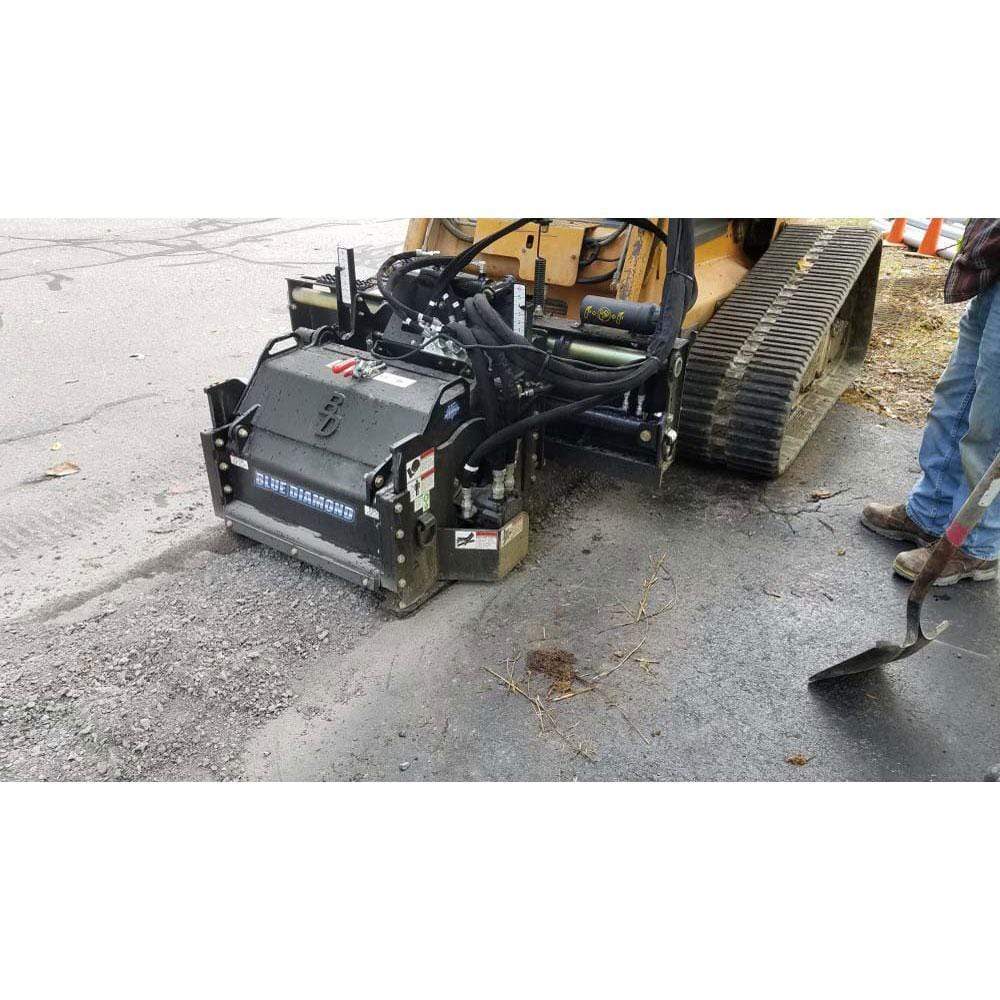

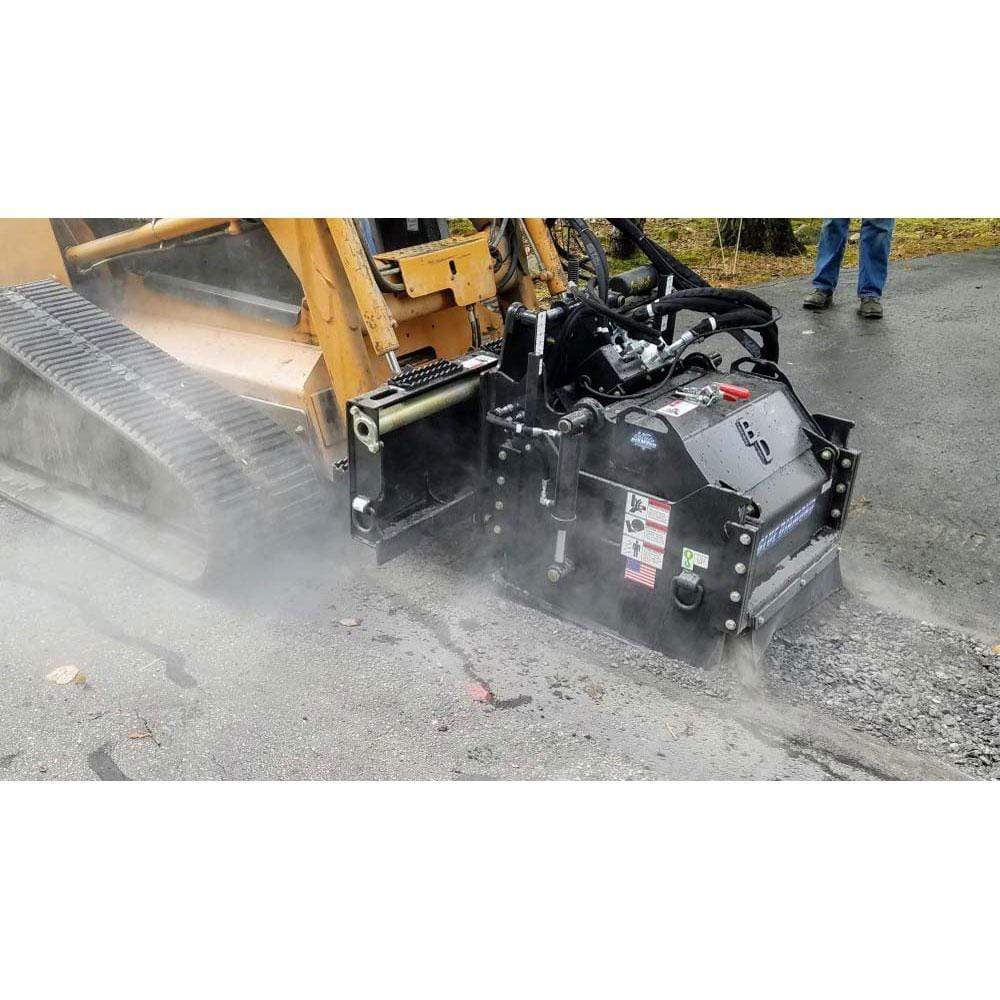

Blue Diamond High Flow Cold Planer

Cutting Width: 16 Inch
Control Type: Case 400, SR, SV & later, JCB, NH, Volvo, 3 Line, 1 Circuit


This premium high flow skid steer cold planer uses the most trusted components in the industry from the Sauer piston motor to the Fairfield planetary hub. These high end components combined with the highly engineered design makes this skid steer cold planer one of the most reliable units available! Using the Rocket Fin tooth from the factory and the V tooth pattern setup, vibration is reduced and productivity is greatly increased! The adjustable side runners provide fine adjustment for grade control. The huge access cover allows easier tooth replacement (reducing tooth change time by up to 50% over competitors). This also provides a much safer way to change the teeth instead of getting under the unit!

Double hung drum with large bearing on non-motor side will far out-last competitive units!!

NEW: Skid shoes are now independently adjustable

Premium Features:

  • 12″ to 48″ grinding widths
  • 6″ or 8″ depth cut
  • High drum weight for less vibration

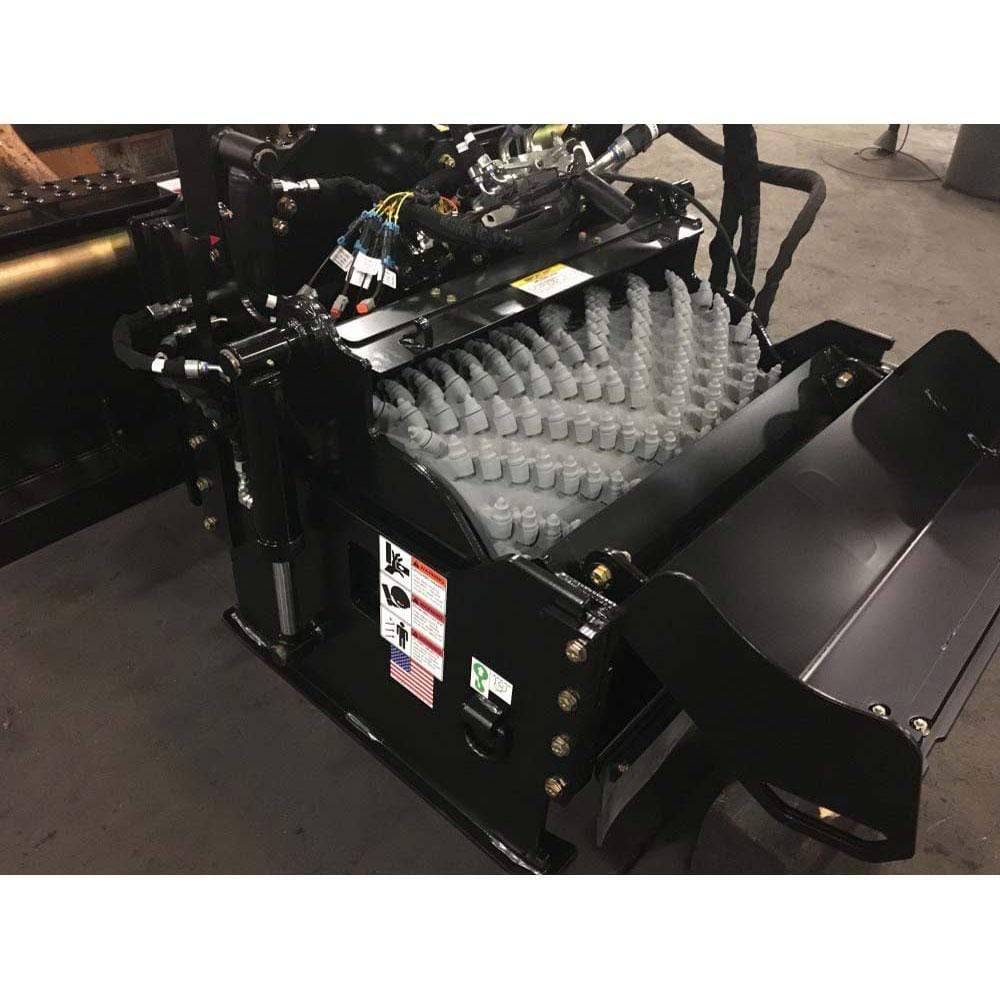

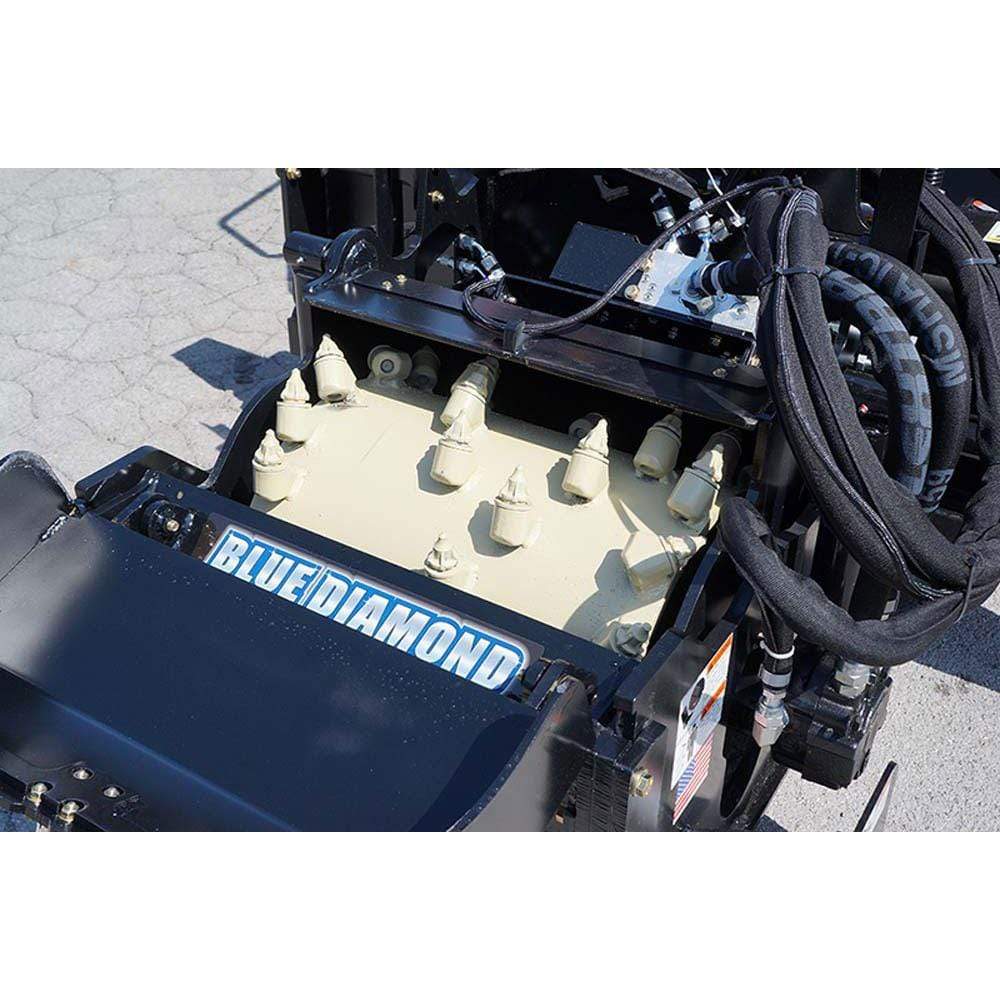

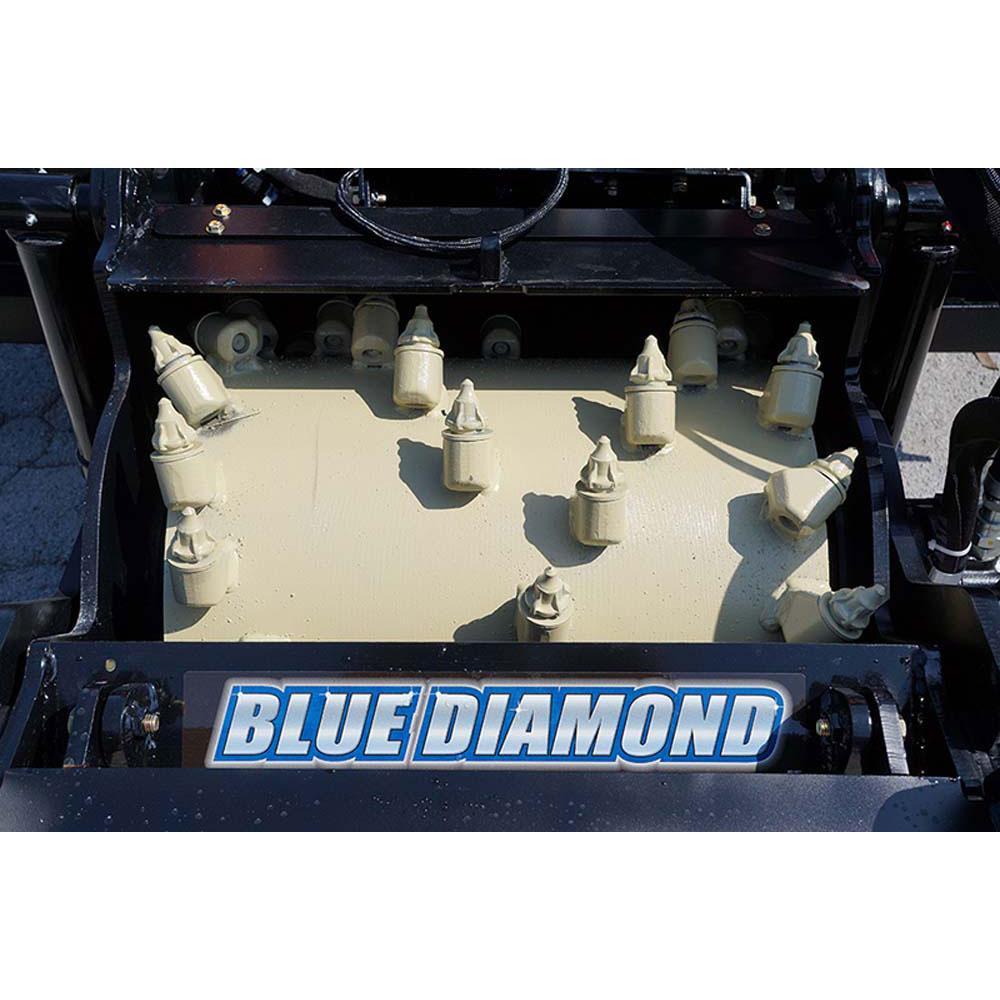

  • Largest drum access in the industry
  • High torque planetary drives (high flow models)
  • 5/8″ thick drum tube
  • 2.5” diameter side shift bar vs. a fabricated lip for the head to slide on
  • Electronic or manual controls
  • Water kit available
  • 1 year warranty
  • Made in the USA
16" high flow Specification
Model 16" high flow
Cutting Width 16"
Cutting Depth 0-6"
Tilt +-15°
Side Shift 26"
# of Teeth 38
Min GPM/PSI 24/2000
Weight (lbs) 1765
18" high flow Specification
Model 18" high flow
Cutting Width 18"
Cutting Depth 0-6"
Tilt +-15°
Side Shift 26"
# of Teeth 40
Min GPM/PSI 24/2000
Weight (lbs) 1805
24" high flow Specification
Model 24" high flow
Cutting Width 24"
Cutting Depth 0-6"
Tilt +-13°
Side Shift 26"
# of Teeth 50
Min GPM/PSI 27/2000
Weight (lbs) 1970
30" high flow Specification
Model 30" high flow
Cutting Width 30"
Cutting Depth 0-6"
Tilt +-10°
Side Shift 26"
# of Teeth 60
Min GPM/PSI 30/2000
Weight (lbs)


40" high flow Specification
Model 40" high flow
Cutting Width 40"
Cutting Depth 0-6"
Tilt +-8°
Side Shift 26"
# of Teeth 76
Min GPM/PSI 30/2750
Weight (lbs) 2450
48" high flow Specification
Model 48" high flow
Cutting Width 48"
Cutting Depth 0-6"
Tilt +-6°
Side Shift 26"
# of Teeth 90
Min GPM/PSI 30/3500
Weight (lbs) 2685
